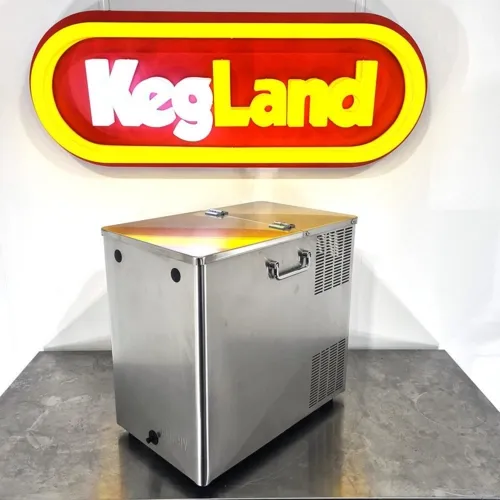

Benchy Countertop Sparkling Water Carbonator and Chiller

Benchy Sparkling is the answer for instant chilled and carbonated water on demand. Simply connect your household water supply and CO2 Cylinder to the unit and receive unlimited sparkling and chilled water from the draft faucets. The chiller is highly efficient with very little power draw while idle and has enough cooling capacity to serve up to 8 gallons of sparkling water per hour. This unit comes without shanks or draft faucets, as it can be used as a countertop unit or installed under your counter and routed to a faucet you install on your counter or kitchen sink.

Easy Installation:

• Plug the Benchy into the wall
• Fill internal water tank
• Connect household water supply
• Connect CO2 Cylinder
• Pour chilled sparking water.

It's that simple and you can be enjoying chilled sparkling water in under 1 hour with this setup and barely any time at all to cool down.

Ensure that the unit is installed and operated according to the instruction manual which can be found below.

Fully Adjustable
The Benchy Sparkling has an integrated digital temp controller so you can control the temperature from 0.5-10°C (33-50°F).  You can also vary the carbonation level from 0.5 volumes to over 5 volumes for super bubbly water.

Cooling Performance
The Benchy Sparkling is able to chill about 5 to 8 gallons of sparkling water per hour (based on ambient water and air temperature of 68°F). To further increase the capacity of this unit, you can pre-chill the water supply either by a holding tank (ball lock keg) in the fridge or a DraftMaster Chiller. If you pre-chill the water, you can more than double the output of the Benchy Sparkling. The reservoir temperature on the Benchy should never be set below 2°C (35°F) as you will run the risk of freezing the water inside the carbonation keg.

Specifications:

• 110V
• Refrigerant: r600a (80 grams)
• Cooling Power: 600 watts
• Power Consumption: 155 watts (idle power consumption less than 5 watts)
• Capacity: approximately 6.6 gal/hour (based on 68°F ambient temperature)
• Input Gas: CO2 @ 29-50 psi (Requires 8mm (5/16") OD tubing)
• Input Water: Must be 15 psi higher than gas pressure (Requires 6.35mm (1/4") OD tubing)
• Sparkling/Chilled Water Out: Requires 8mm (5/16") OD tubing
• Dimensions: 18.3" H x 11.4" W x 20.5" D (Excluding sight glass that can be removed)

Recommended Accessories:

• CO2 Gas Cylinder
• CO2 Regulator
• EVABarrier 4mm x 8mm Tubing
• PE Water Line Tubing
• 6.35mm Duotight In-Line Regulator (0-150 psi)
• Duotight Reducer - 8mm x 6.35mm
• 8mm Duotight Check Valve
• Diverter Valve (check water line connection for the size you'll need)

Countertop Installation Recommended Accessories:

• (2) Short Shanks & Hex Nuts
• (2) Duotight Adapters - Beer Thread x 8mm
• (2) NukaTap FC Faucets & Self Closing Springs
• (2) Tap Handles (of your choice)
• Tube Cutter
• Faucet & Shank Wrench
