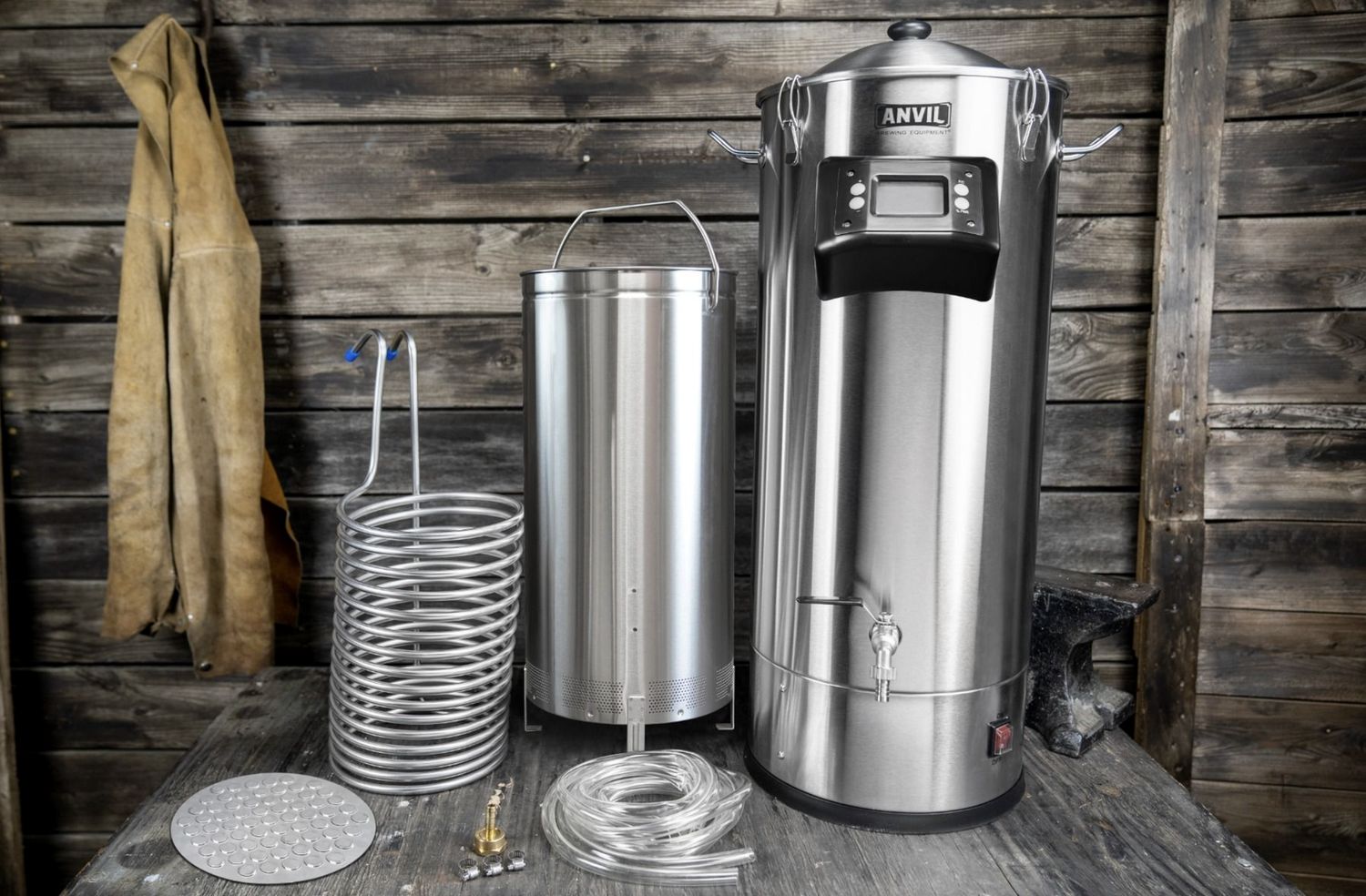

Anvil Foundry- 10.5 Gal

The ANVIL Foundry™ is the most versatile all-in-one brewing system available. From the triple element low watt density dual voltage heaters for blazing fast heating speeds, to the unique high flow grain basket, you won't find a more powerful feature rich product.

• Switchable Between 120V 1600W, 13A and 240V 2800W, 12A for Faster Heating & Better Boils.
• Unique High Flow Grain Basket with 150% More Perforations to Virtually Eliminate Stuck Mashes.
• Large Capacity Increases Efficiency and Grain Capacity.
• Double Wall Insulation Maintains Mash Temps and Increases Heating Speeds.
• Ultra Low Watt Density, Triple Element Heaters - Won't Scorch.
• Linear Digital Power Control and Solid-State Switching for Fine Tuning your Boil.
• Turbo 500 Distillation Ready.
• Includes High Capacity Stainless Immersion Chiller with Hoses & Fittings.
• Two Sizes Available: 10.5 Gallon for 5 Gallon Batches and 6.5 Gallon for 2.5-3 Gallon Batches.
• Optional Recirculation Pump Kit - $99.00
• 10.5 Dimensions
  Tank Diameter = 12.5 inches
  Distance Across the Handles = 17 inches
  Height of Base Unit = 29.75 inches
  Lid = 3.25 inches
  Total Height = 33 inches
  Spigot Height from Base = 7 inches
  Shipping Weight = 38 lbs
• Wattage
  120V = 1600 watts
  240V = 2800 watts

Batch Size
The Foundry 10.5 Gallon system can make a minimum batch size of 4 Gallons. In addition with the Foundry Small Batch Adapter Ring which takes the minimum batch size down to 2 Gallons.

View the owners manual here!
